Gas cylinder reactive furnace

Heating devices are used not only in residential, but also in industrial premises. There are a great many modifications to them, because in workshops, conditions are usually not intricate. Therefore, they install everything that is available and economical - from stoves to technically sound heating systems. Today we offer to consider one of the most interesting models of stoves. A rocket or jet furnace is fundamentally different from the others by a high degree of heating and convection of the body, which is made either from bricks (a stone furnace) or from a thick-walled metal. This heater is equipped with a water circuit, connected to radiators and get almost full-fledged economical heating system. Our version of the jet furnace is the author of homemade products that we propose to make from an empty propane cylinder. A small upgrade, a minimum of parts and you have a great option for a heating furnace for a production workshop!

The principle of operation of the furnace

The furnace consists of a firebox, a heated container and a chimney. The fire pipe is made in the form of a bent pipe, in which the burning of firewood occurs in its lower part. Hot air rises through a vertical pipe located in the center of the heated container, which in our case is made of a gas cylinder. Rising up, the hot air heats the walls of the tank, and gradually cooling down, comes down through the chimney, which creates convection of air and traction in the furnace.
Reactive gas cylinder furnace
Materials:
  • Propane gas cylinder;
  • Square pipe, welded from double angles;
  • Metal corner 50x50x5 mm;
  • Round pipe for a chimney with swivel knees;
  • Auxiliary metal elements: plates, trimmed corners, plugs.
Tools:
  • For metal cutting: plasma inverter cutter or Bulgarian with a stripping and cutting discs;
  • Welding machine;
  • Metal straight angle, tape measure, marker for marking;
  • Bubble level, hammer,brush on metal.

Manufacturing stove-rockets

Before starting to work, you must remember that gas cylinders are extremely flammable and explosive. They must be thoroughly rinsed with water, temporarily separated in a cylinder, because even small residues of liquefied gas during cutting can lead to an explosion of the container.

Preparing a cylinder

A propane household cylinder consists of a neck , shell and bottom. Usually it is placed vertically, so that the stop valves remain in the most prominent place in the center of the balloon. It is necessary to get rid of it, lightly tapping with a hammer.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder
By unscrewing the choke with a wrench, fill the balloon with water to wash off the remaining liquefied gas. Let's leave the water for a while, and then gently tilt the container and merge it. Even after such measures we transfer the balloon neatly to the place of processing. Using a plasma cutter, cut off the bottom of the container. "style =" max- width: 100%; " alt="Reactive furnace from a gas cylinder">
Reactive furnace from a gas cylinderReactive furnace from gas cylinder
Reactive furnace from a gas cylinder

We cut pipes and scald the firebox

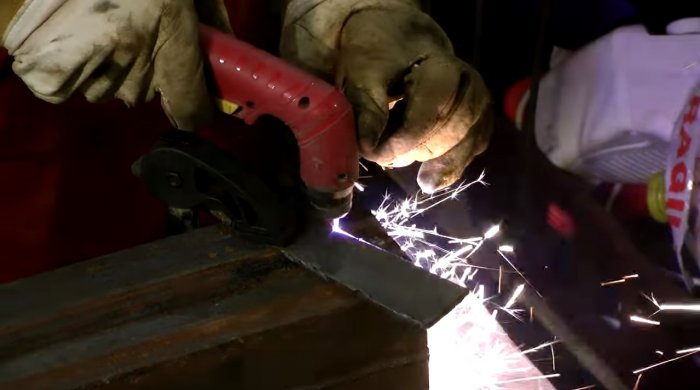

The next step is to cut the metal corners according to the size of the loading chamber, the firebox and the air duct. Cut them with a grinder or plasma cutter, and boil each of them along the ribs. Connections will be located at different angles. The dimensions of these elements are as follows:
  • Vertical air duct - 900 mm;
  • Horizontal firebox - 500 mm;
  • Feeder or loading chamber - 400 mm.
The furnace and duct are connected perpendicularly. We cut the ends of these pipes into 45 degrees at a whisker, and boil the pipes from all sides. Since the metal in the welding process is heated above 1,500 degrees Celsius, it can lead. Therefore, it is not superfluous to check the accuracy of the connection with a metal corner.
Reactive furnace from a gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder
The location of the loading chamber will be inclined, therefore, the feeder pipe must be cut at an angle of less than 45 degrees. Expose it to the fuel pipe a few centimeters from the edge of the furnace, where the ashpit will later be located. By marking the section of the pipe we make a slot at the junction of the elements, and boil it in place.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder

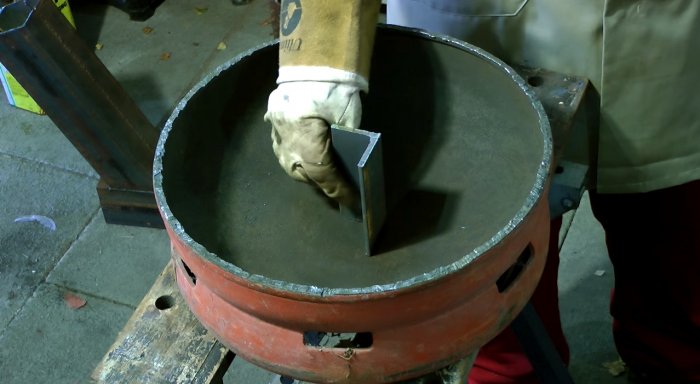

The fuel tank must be set straight and firmly secured. It will be supported by a small segment of a corner, from which pipes were made.Cut it exactly in size, and put it on the bottom of the balloon, checking the identity of the flat line between the planes of the balloon with a metal corner.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder
Boil the firebox, reinforcing the vertical ductwork with metal plates or corners. Mark up the seat for him on the wall of the cylinder, and make the cut plasma or grinder. The more accurate the cut is, the easier it is to then scalp it.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder

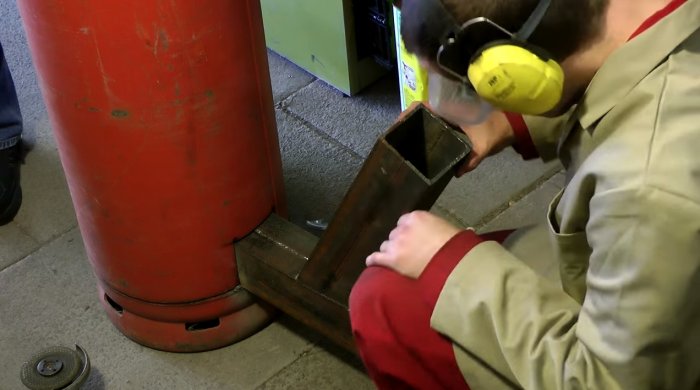

Expose the firebox so that the vertical pipe inside the cylinder is located strictly in the center. We weld the bottom and the nozzle of the furnace with a welding machine.
Reactive furnace from gas cylinder
Reactive Furnace from a Gas Cylinder

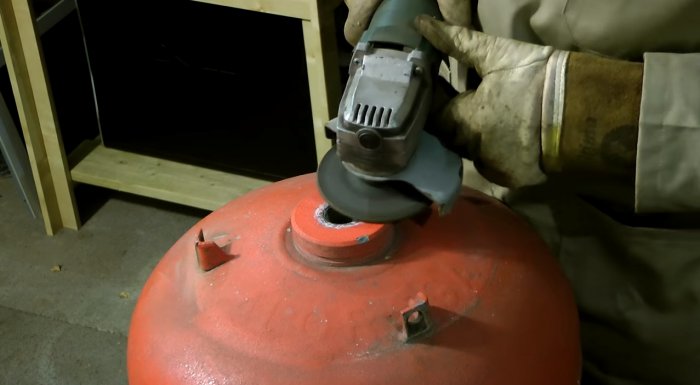

An ordinary bolt or similar piece of metal will help to muffle the opening at the top of the cylinder. Insert it into the hole, and weld it to the balloon. You can clean the seam with a grinding disc and grinder.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactor from gas cylinder

Install the chimney

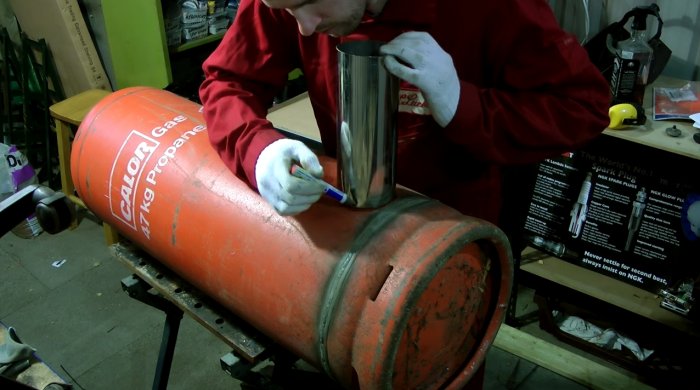

At the bottom of the cylinder, on the opposite side of the furnace, install the chimney. Mark the fitting hole of the nozzle with a marker, cut a circle in the cylinder wall, and scald along the contour.
Reactive furnace from gas cylinder
Reactive furnace from gas cylinder
Reactive furnace from a gas cylinder
Reactive Furnace from a Gas Cylinder
We close the blower for the ash pan with a removable lid with a thermal insulating handle. For convenience, it can be attached to the loop. Through this hole it will be most convenient to set firewood in the stove.
